Packaged Liquid Ring Vacuum Pump Systems

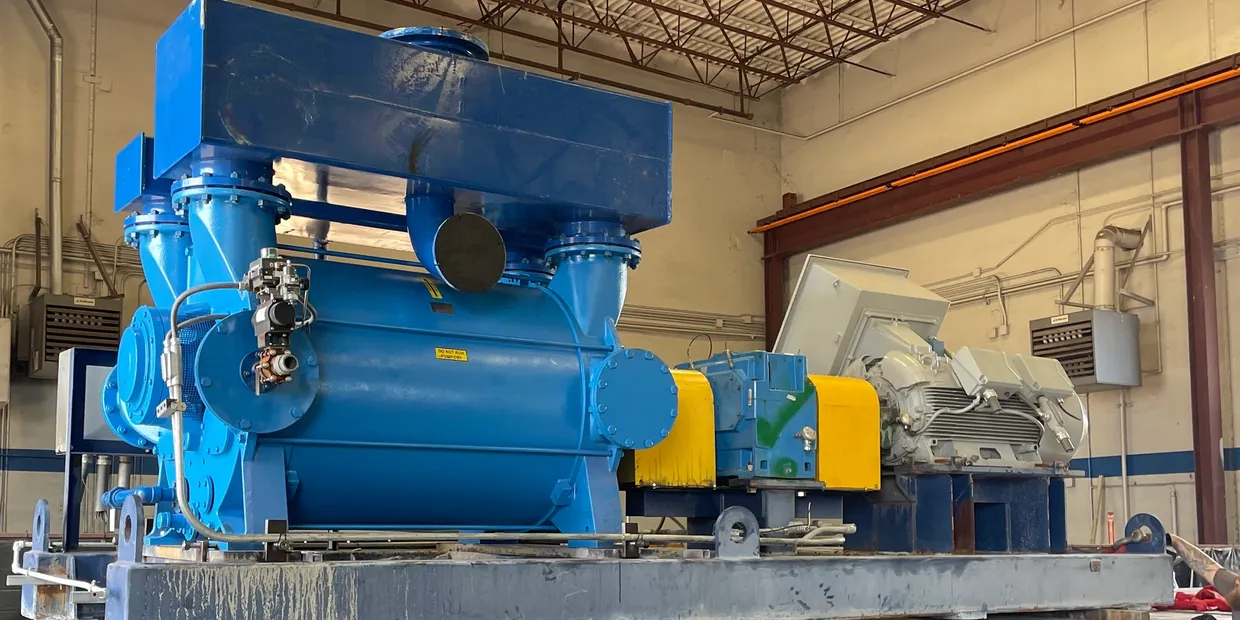

A packaged liquid ring vacuum pump system is a complete, skid-mounted unit: the vacuum pump, its motor and drive, seal water handling, separator, manifolds and controls, assembled and tested as one piece of equipment. Precise Mechanical designs and fabricates these packages in Houston around a new, rebuilt or exchange pump, and ships them nationwide. Each package is engineered with your engineering department and built from whichever component manufacturers your plant standardizes on.

We are an independent shop, so the package is not limited to one pump brand or one motor catalog. If your plant runs Nash® CL pumps on the paper machine and Somarakis® units on the process side, we can package either, and we can put a Precise-manufactured drop-in replacement on the skid in place of the original.

What a package can include

Every package starts with the pump and the duty point. From there, the scope is whatever the installation needs, from a bare pump and motor on a common base to a fully instrumented skid with variable frequency drive, seal water recirculation and a control panel.

Component	Options
Vacuum pump	New Precise-manufactured drop-in replacement, rebuilt customer pump, or exchange unit; Nash CL, 2BE, AT, SC, 904, HC compatible; Somarakis SV/HV compatible (PM 5986); SIHI, Siemens, Graham, Travaini replacements
Pump materials	Cast iron; 304L or 316L stainless steel cladding on cast iron; 304, 316L, titanium or Hastelloy on the PM 5986 line
Motor	Customer-specified manufacturer, enclosure, voltage and frame; sized to the pump's brake horsepower at the operating vacuum
Drive	Direct coupled, gearbox, or belt drive with guard; drive selected to match required pump speed
Variable frequency drive (VFD)	Optional VFD for speed control, soft starting and energy savings at part load; supplied loose or panel-mounted
Seal water system	Once-through, partial recirculation, or full recirculation with heat exchanger; seal water flow monitors and regulating valves
Separator	Discharge separator or silencer-separator sized to the pump, with level control and drain
Manifolds and piping	Inlet and discharge manifolds, check valves, vacuum relief, isolation valves, flanged to customer spec
Instrumentation	Vacuum gauges, temperature and flow monitors, pressure switches, and connections for plant DCS
Controls	Motor starter or VFD panel, local disconnect, control wiring to a terminal box or full control panel
Base and structure	Fabricated structural steel skid, drip pan, lifting lugs, anchor bolt pattern to customer drawing
Finish	Primed and painted per customer specification

Components are supplied by the manufacturers you name. If the plant has a preferred motor brand, a standard VFD, or a spec for coupling guards, we build to it. If you have no preference, we recommend from what we have seen hold up in the same service.

How the design process works

Packages are engineered jointly with the customer's engineering department. We do not hand you a catalog drawing and ask you to make it fit.

The process begins with the duty: required capacity, operating vacuum, gas composition, seal water source and temperature, and any compressor-mode discharge pressure. From that, we select or build the pump and size the motor and drive. Our engineering department then lays out the skid around your footprint, connection points and access requirements, and issues a general arrangement drawing for review.

You review the drawing, mark it up, and we revise it until it is approved. Only then does fabrication start. Components are ordered from the manufacturers specified on the approved drawing, and the pump is built or rebuilt in our shop while the skid is fabricated. The package is assembled, aligned and checked as a unit before it is crated for shipment.

Fabrication capability

Skid fabrication is done in-house, in the same shop that repairs and manufactures the pumps. That keeps the schedule in one place and lets the pump and the base be built to each other.

CNC plasma table, 5 ft by 10 ft, cutting plate up to 1-1/4 in. thick, for base plates, gussets and brackets
Plate roll, 10 ft length, 1-1/4 in. thick capacity, for separator shells and drip pans
MIG and TIG welding for structural steel, carbon steel piping and stainless components
Milling, turning and grinding for machined pads, coupling hubs and adapter plates
Vertical boring mills up to 120 in. swing and lathes to 240 in. between centers for the pump components themselves

The same machine tools that let us rebuild the largest liquid ring pumps in service also let us machine motor mounting pads flat and true on a skid, which is what keeps alignment stable after installation.

Typical applications

Packaged units go wherever a plant wants a vacuum source delivered as one piece of equipment rather than assembled in the field.

Pulp and paper: forming section, couch roll and uhle box vacuum on paper machines, and vacuum for felt conditioning
Power generation: condenser exhausting and hogging packages
Chemical and petrochemical: process vacuum, solvent recovery and vacuum distillation
Refinery and oil and gas: vapor recovery in vacuum or compressor mode, where a liquid ring pump handles wet, dirty gas
Mining: vacuum filtration and dewatering
Food, beverage and pharmaceutical: vacuum drying and deaeration
General industrial: central vacuum systems and replacement of aging skids

A packaged unit is also the practical answer when an old skid has reached the end of its life. Rather than repairing a corroded base and re-using undersized piping, we build a new skid around a new or rebuilt pump and ship the whole assembly ready to set and connect.

Frequently Asked Questions:

What is included in a packaged liquid ring vacuum pump system?

A package combines the vacuum pump, motor and drive, seal water system, separator, manifolds, instrumentation and controls on a single fabricated skid. Scope ranges from a pump and motor on a common base to a fully instrumented skid with a VFD and control panel, depending on what the installation needs.

Can you package a pump I already own?

Yes. We can rebuild your existing pump through our seven-step repair process and mount it on a new skid, or supply a new Precise-manufactured drop-in replacement or an exchange unit in its place. The choice usually depends on the condition of the pump and how quickly the package is needed.

Do you supply a VFD with the package?

A variable frequency drive is an available option on any package. It provides soft starting, allows pump speed to be adjusted to the actual vacuum demand, and reduces power at part load. The VFD can be supplied loose for installation in your motor control center or mounted in a panel on the skid.

Which motor and component brands do you use?

Whichever brands your plant specifies. Packages are engineered with your engineering department, and components come from any manufacturer named on the approved drawing. If you have no preference, we recommend based on what has held up in similar service.

Is the skid fabricated in-house?

Yes. Skids are cut on our 5 ft by 10 ft CNC plasma table, formed on our 10 ft plate roll, and welded with MIG and TIG in the same Houston shop that builds and repairs the pumps. Mounting pads are machined on our own mills so alignment holds after installation.

What information do you need to quote a package?

Required capacity, operating vacuum, gas composition, seal water source and temperature, motor voltage, and the footprint and connection points available. If you are replacing an existing skid, a photo of the pump nameplate and the old arrangement drawing are the most useful starting points.
